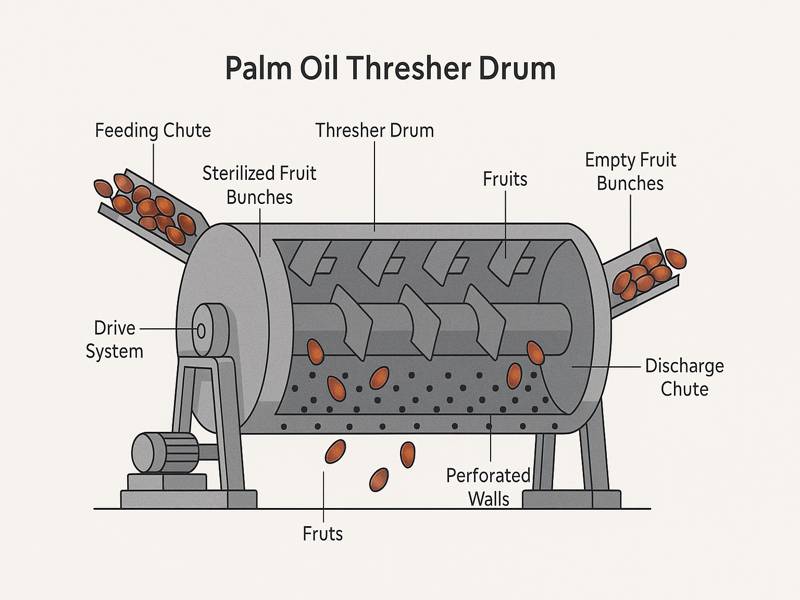

In palm oil processing, efficient threshing—separating fruits from sterilized FFB—directly impacts yield and product quality. The thresher drum, though often overlooked, ensures clean separation, minimal damage, and smooth extraction. What Is a Palm Oil Thresher Drum? A palm oil thresher drum (also known as a fruit bunch stripper) is a rotating cylindrical machine used to strip sterilized palm fruits from their bunch stalks (rachis) through mechanical impact and agitation. It typically follows the sterilization stage, where bunches are softened using high-pressure steam. The thresher drum then dislodges the individual fruits from the bunches, which are sent for oil extraction, while empty bunches (EFB) are discharged for further handling. Core Working Principle The thresher drum operates based on rotational impact and agitation. Here’s how the process unfolds: Sterilized FFB are fed into one end of the rotating drum. As the drum turns, the bunches are lifted and dropped repeatedly by internal lifters or baffles. This tumbling and dropping action causes fruits to detach from the bunch stalks. Detached fruits fall through perforations or mesh openings at the bottom of the drum. Empty bunches are discharged at the opposite end for disposal or use in boilers. This mechanical separation is more efficient than manual methods and supports continuous operation. Structural Design of a Thresher Drum The thresher drum is a robust, cylindrical steel shell with the following key components: A. Drum Body Material: Typically made of mild steel or stainless steel for corrosion resistance. Size: Length ranges from 6 to 12 meters, and diameter from 1.2 to 2.0 meters, depending on processing capacity. Shape: Slightly inclined for natural fruit and bunch movement. B. Internal Lifters / Flights Arrangement: Spiral or radial arms welded inside the drum. Function: Lift and drop bunches during rotation to enhance fruit detachment. Design: Often adjustable or replaceable based on wear rate and fruit type. C. Shell or Mesh Perforations Function: Its purpose is to let divided fruits flow through and gather underneath. Hole Size: Typically 25–40 mm, sized to retain bunches but release loose fruits. D. Drive System Type: Gearbox-driven motor with V-belt or chain drive. Speed: Rotates at 18–25 rpm—fast enough for impact but slow enough to prevent fruit bruising. E. Feed and Discharge Openings Feed chute: Accepts FFB from sterilizer cage tippers. Fruit outlet: Located beneath the drum, often connected to conveyor belts or fruit collectors. EFB outlet: Positioned at the rear to eject stripped bunches. F. Support Frame Rigid steel base with anti-vibration mounts or bearing rollers for smooth operation. Process Flow Integration The thresher drum sits at a crucial point in the palm oil processing line: Sterilizer → Tippler → Thresher Drum → Fruit Conveyor → Digester The sterilized bunches are tipped into the drum, and once separated, loose fruits are conveyed for further processing. EFBs are either sent to fiber handling units, shredded for composting, or incinerated for steam generation. Typical Thresher Drum Specifications Specification Value Range Processing capacity 5–60 tons FFB/hour Drum diameter 1.2 – 2.0 meters Drum length 6 – 12 meters Rotational speed 18 – 25 rpm Material Mild/stainless steel Lifters Spiral fins or blades Power consumption 15 – 45 kW motor Fruit recovery efficiency ≥ 95% Fruit damage rate < 2% Capacity Planning: How Much Can It Handle? The thresher drum’s capacity depends on several variables: Feed rate of sterilized FFB (tons per hour) Fruit-to-bunch ratio (usually 22–28%) Drum size and speed Sterilization quality (undercooked bunches = lower efficiency) Example Calculation: If a thresher drum is rated at 30 tons/hour and your fruit-to-bunch ratio is 25%, then: Input: 30 tons FFB Output fruit weight: 7.5 tons/hour Empty bunch: 22.5 tons/hour Choosing the right drum size and operating speed ensures the system matches upstream (sterilization) and downstream (digestion and pressing) processes. Efficiency Indicators and Optimization The effectiveness of a thresher drum can be measured using the following KPIs: A. Fruit Recovery Rate Percentage of fruits successfully detached from bunches. A good drum achieves ≥95% detachment. Poor sterilization or worn lifters can reduce this efficiency. B. Fruit Bruising Index Measures physical damage to fruit during threshing. Excessive speed or sharp lifters can cause oil oxidation and reduce OER (Oil Extraction Rate). Target damage rate: <2% C. Empty Bunch Cleanliness Indicates how many fruits remain on the EFB. Should be minimal—visual checks and weight loss analysis can be used. D. Downtime & Maintenance Frequency Bearings, mesh, and lifters must be checked regularly. Unexpected breakdowns can halt mill operations. Maintenance and Safety Regular preventive maintenance extends the life of the thresher and prevents breakdowns: Maintenance Checklist: Inspect and tighten lifters and fasteners Check roller bearings and lubrication Clean perforations to prevent clogging Monitor the motor and gearbox for wear Inspect drive belts or chains Safety Measures: Install emergency stop buttons. Use protective covers for moving parts. Provide operator training on load limits and hazards. Always stop the drum before manual cleaning. Understanding the design principles, throughput capacities, and efficiency factors of thresher drums allows mill operators to optimize processing, minimize fruit loss, and increase profitability. Whether you’re operating a small 5-ton/hour mill or a high-capacity industrial facility, choosing and maintaining the right thresher drum will play a key role in your plant’s overall success.
