Palm oil is a key vegetable oil globally, essential for edible oil consumption. Palm oil mills extract it through sterilization, pressing, and refining, with steam boilers playing a crucial role in supplying heat and steam for these processes. This article explores the importance of steam boilers in palm oil mills, factors for choosing and operating them, operational challenges, best practices for efficiency, and new technologies to enhance boiler performance.

Understanding steam boilers in palm oil mills

Steam boilers are essential in palm oil mills for providing the heat and steam required during various stages of the oil extraction process. They generate steam that is used to sterilize fresh fruit bunches (FFBs), facilitate the pressing of palm fruits to extract oil, and dry the products, such as palm kernel cake.

Key Operations That Rely on Steam:

• Sterilization: Steam is used to cook the palm fruit to soften it and facilitate easier separation of the oil and other components.
• Oil Extraction: Steam helps to heat the palm fruit during pressing, which increases the yield of crude palm oil (CPO).
• Drying: Steam is used to dry products such as palm kernel cake or residue after oil extraction.
• Energy Generation: Steam boilers can also generate energy that powers other mill operations, including electricity generation.

Steam plays a central role in ensuring that the palm oil extraction process runs smoothly, efficiently, and with minimal quality degradation.

How Steam Boilers Support Palm Oil Mill Efficiency

Sterilization Process

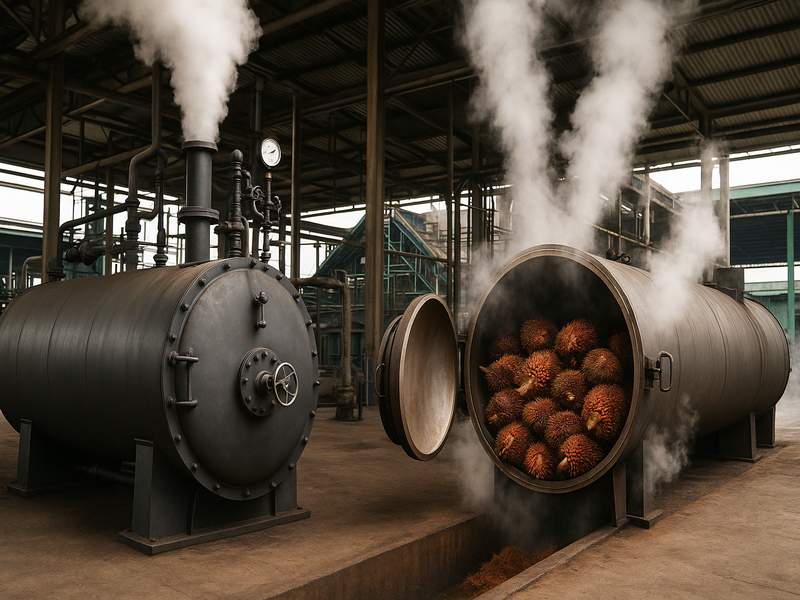

Sterilization is the first step in the palm oil extraction process and is critical for controlling the formation of free fatty acids (FFAs) in the oil. In this process, FFBs are subjected to steam at high temperatures (around 140–145°C) for 60 to 90 minutes. The high pressure and temperature provided by the steam help break down the fruit’s cell walls, making it easier to separate the oil and palm kernel.

Without a reliable steam boiler, sterilization becomes inefficient, resulting in a lower quality oil product with higher FFAs.

Steam for Oil Extraction

During oil extraction, the pressing process benefits from the application of heat. Steam is injected into the screw press to assist in the pressing of the fruit and increase the oil yield. The steam decreases the oil’s viscosity, making it easier to remove.

The steam pressure also helps increase the release of oil from the fruit and palm kernel, ensuring a higher yield of crude palm oil (CPO).

Energy Generation

Palm oil mills require energy to operate, and steam boilers play a significant role in generating that energy. By utilizing biomass such as palm kernel shells or other waste products from the milling process, steam boilers can provide both process steam for sterilization, pressing, and drying, and electricity for mill operations.

Drying

The drying process, which is required for products such as palm kernel cake, relies heavily on steam. By using steam boilers to generate the required heat, mills can dry the cake or residue efficiently. Without a reliable steam source, the drying process becomes slower and less energy-efficient, reducing mill throughput.

Boiler Type	Application	Key Features
Fire-Tube Boiler	Small to medium mills	Simple design, easy maintenance
Water-Tube Boiler	Larger mills with high steam demand	High-pressure, higher efficiency
Fluidized Bed Boiler	High-efficiency mills	Biomass fuel, low emissions

Palm Oil Mills Use Various Types Of Steam Boilers

Fire-Tube Boilers

Fire-tube boilers are a popular choice in palm oil mills due to their simplicity and cost-effectiveness. These boilers circulate hot gases through water-filled tubes. The heat from the gas transfers to the water, resulting in steam.

Advantages:

• Suitable for lower pressure requirements
• Easy to maintain and operate
• Relatively low initial cost

Disadvantages:

• Less efficient at higher pressures and capacities
• Limited heat recovery

Water-Tube Boilers

Water-tube boilers are commonly used in larger palm oil mills because they can tolerate higher pressures and produce more steam effectively. Water travels through tubes in this sort of boiler, which are heated by combustion gases outside.

Advantages:

• High thermal efficiency
• Ideal for larger mills with higher steam requirements
• Better suited for high-pressure and high-capacity operations

Disadvantages:

• Higher initial cost
• Requires more maintenance than fire-tube boilers

Fluidized Bed Boilers

Fluidized bed boilers are newer, more efficient designs that use a mixture of air and biomass fuel to create a fluid-like bed where combustion occurs. This results in efficient combustion and better heat transfer.

Advantages:

• Higher fuel efficiency
• Reduced emissions and cleaner combustion
• Suitable for utilizing palm waste products as fuel

Disadvantages:

• Higher capital and operational costs
• Requires more space for installation

Recommended Operating Parameters for Steam Boilers in Palm Oil Mills

Parameter	Recommended Value	Impact
Temperature	140-145°C for sterilization	Efficient fruit sterilization
Pressure	10-15 bar for most operations	Optimal steam generation and yield
Fuel Efficiency	80-90% efficiency	Reduces fuel consumption and costs

Key Considerations for Choosing the Right Steam Boiler

Boiler Capacity and Pressure Requirements

The capacity and pressure of the steam boiler must match the mill’s production requirements. Steam demand, pressing time, and the number of sterilizers in operation must all be taken into account when determining the appropriate boiler size. High-pressure boilers are necessary for large mills that require a significant amount of steam for sterilization, pressing, and drying.

Fuel Type & Efficiency

Fuel efficiency is an important issue when selecting a steam boiler. Palm oil mills typically use biomass fuel such as palm kernel shells, empty fruit bunches (EFB), or palm oil mill effluent (POME) as a renewable energy source. Boilers that are designed to handle these biomass fuels efficiently can reduce operating costs significantly.

Fuel efficiency can be affected by the boiler design, type of fuel used, and the level of automation in the boiler system. Modern boilers have superior combustion control and heat recovery systems, which increase overall efficiency.

Boiler Maintenance and Longevity

Steam boilers require proper maintenance to preserve their longevity and efficiency. Burners, pressure gauges, heat exchangers, and safety valves are critical components that must be inspected and maintained on a regular basis. Neglecting maintenance can result in lower efficiency, higher fuel use, and even boiler failure, resulting in costly downtime.

Environmental and Regulatory Compliance

Environmental regulations governing emissions and fuel use in palm oil mills are becoming more stringent. It’s important for mills to choose steam boilers that comply with local environmental regulations regarding air quality and emissions. Boilers with low NOx emissions, efficient fuel usage, and heat recovery systems are necessary to ensure compliance.

Challenges in Steam Boiler Operations in Palm Oil Mills

Fuel Availability and Cost

The availability and cost of fuel are critical factors in steam boiler operation. Fluctuating fuel prices can lead to unexpected increases in operational costs. Additionally, relying on biomass fuel like palm kernel shells or EFB can be affected by seasonal availability. Mills may need to consider alternative fuels or improve fuel efficiency to mitigate these challenges.

Boiler Efficiency Losses

Boiler efficiency can degrade over time due to poor maintenance, scale buildup, and incomplete combustion. Common causes of efficiency losses include clogged tubes, reduced heat transfer, and suboptimal burner operation. Regular cleaning, maintenance, and performance monitoring can help maintain boiler efficiency.

Downtime and Operational Interruptions

Downtime due to boiler failures is a significant issue in palm oil mills. Boiler breakdowns can cause extended operating interruptions, resulting in a loss of production. Preventive maintenance schedules, early fault detection systems, and redundant boiler setups can help minimize downtime and maintain continuous mill operations.

Boiler Scaling and Water Treatment

Water quality is crucial to the performance and lifetime of steam boilers. Poor water quality can cause scaling in the boiler tubes, limiting heat transfer efficiency. Mills must implement water treatment systems to remove impurities and prevent scaling.

Steam Boiler Maintenance: Best Practices for Palm Oil Mills

Routine Inspections and Monitoring

Operators should keep track of crucial factors such pressure, temperature, fuel usage, and steam output. Automated monitoring systems can provide real-time data and alerts, making it easier to detect potential issues before they escalate.

Maintenance Strategies for Prevention

Preventive maintenance identifies and resolves faults before they become severe problems. Key preventive maintenance activities include:

• Cleaning heat exchangers and burners
• Inspecting and replacing worn components (e.g., seals, pressure gauges)
• Checking safety valves and pressure relief devices

Emergency Preparedness and Troubleshooting

Mills should develop emergency protocols to handle steam boiler failures. Common troubleshooting methods include checking for fuel supply issues, burner malfunctions, and water treatment problems.

Innovations in Steam Boiler Technology for Palm Oil Mills

High-Efficiency Boilers

Advances in steam boiler technology have resulted in the development of high-efficiency boilers that use less fuel and have lower operating expenses. These boilers incorporate features like preheating, heat recovery systems, and advanced combustion control to improve efficiency.

Automation and Control Systems

Automation systems can optimize steam boiler operations by adjusting parameters such as fuel flow, temperature, and pressure in real-time. Automated boilers can improve efficiency, reduce emissions, and enable better monitoring of fuel consumption and emissions.

Green and Sustainable Boiler Solutions

The trend toward green energy and sustainability has led to the development of biomass boilers that utilize palm waste products as fuel. These eco-friendly solutions not only reduce the carbon footprint of palm oil mills but also improve the sustainability of the milling process.

Palm oil mills rely heavily on steam boilers to maintain production and efficiency. Choosing the right type of boiler, implementing best practices for maintenance, and adopting modern, efficient technologies can greatly improve the performance of a palm oil mill. By optimizing steam boiler operations, mills can reduce costs, enhance production capacity, and ensure a sustainable, eco-friendly milling process.
