Single Palm Oil Screw Press Machine

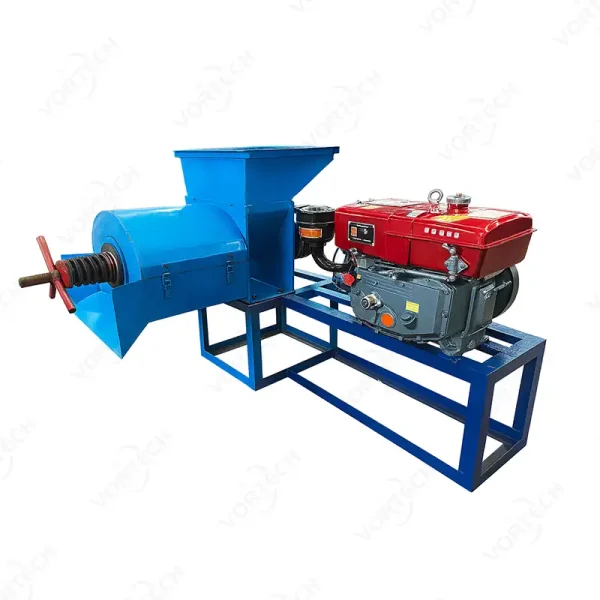

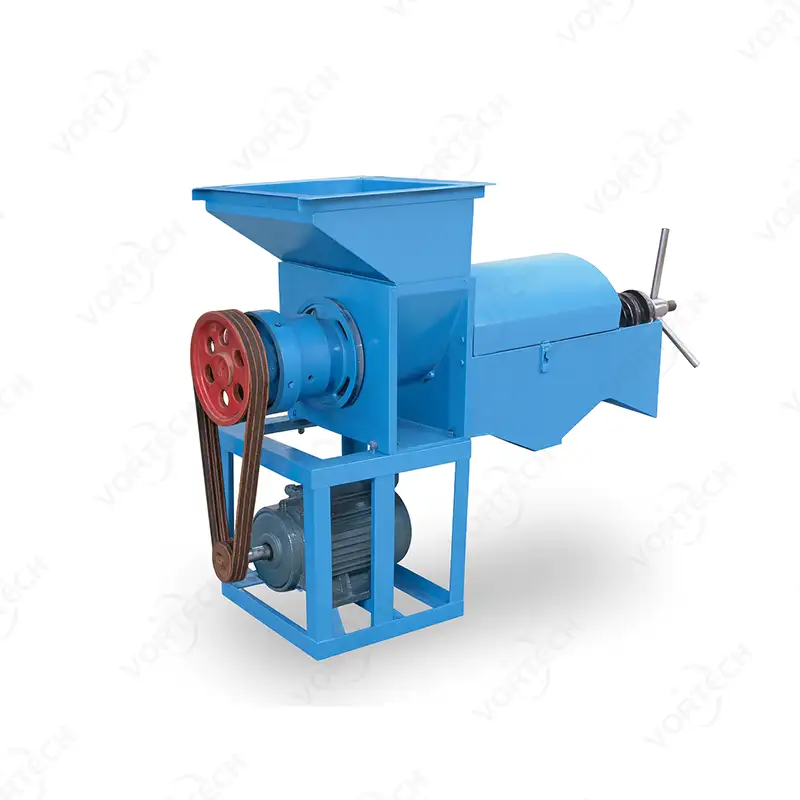

- Operation Mode: Electric Motor or Diesel Engine
- High-efficiency Oil Extraction: Screw-driven, continuous compression, shaft speed 25-35 rpm.
- Flexible Output: Processes 1.3–20 tons/day with oil residual ≤7.8% in cake.
- Compact and Durable: Efficient design, power output 4-30 kW, stable operation, and long service life.
- Correo electrónico: sales@vortechglobal.com
- Categorías: Equipos Para Aceite de Palma
- Consultar ahora
Product Details
Features of Single Palm Oil Screw Machine:
- Low brown core crushing rate
- Low residual oil of cake residue
- No special requirements on raw material moisture content
- Excellent manufacturing process
- Compact structure, large output, stable and reliable operation, low maintenance, and durability
Product Parameter:
| Model | Input capacity(tons/24-hour) | Oil residual rate of cake(％) | Revolving speed of pressing screw(r/min) | Power(kw) | Overall dimensions(mm) Height*Width*Depth | Weight(kg) |
| VG-70 | ≥1.3 | ≤7.8 | 36～42 | 4 | 1090×405×806 | 195 |
| VG-90 | ≥3 | ≤7.8 | 32～42 | 5.5 | 1200×550×1000 | 285 |
| VG-10 | ≥3.5 | ≤7.8 | 26～36 | 7.5 | 1620×580×1165 | 570 |
| VG-10-8 | ≥4.5 | ≤7.8 | 32～40 | 11 | 1720×580×1185 | 590 |
| VG-120 | ≥6.5 | ≤7.6 | 32～40 | 15 | 1860×622×1275 | 680 |
| VG-130 | 8~10 | ≤7.6 | 28～40 | 18.5 | 1950×742×1500 | 825 |
| VG-140 | 9~11 | ≤7.6 | 28～38 | 22 | 2010×690×1430 | 806 |
| VG-168 | 20 | ≤7.4 | 32-38 | 30 | 2670×1000×1726 | 1820 |

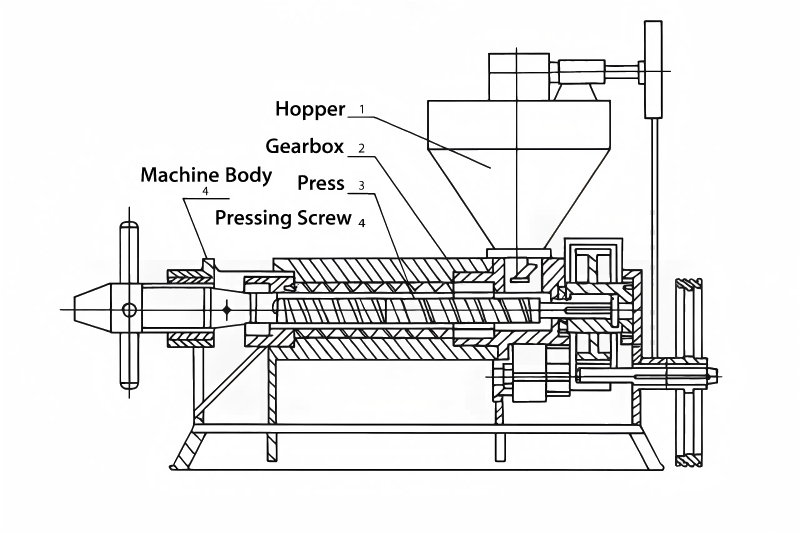

Components of Single Palm Oil Screw Machine:
