Many people confuse a palm nut crusher and a palm kernel crusher because both are used in palm kernel production. However, they operate at different stages and handle different materials.

After crude palm oil extraction, palm nuts still contain valuable kernels that require precise processing. The key difference between these machines lies in the input material, crushing purpose, and how the crushing process is controlled.

Understanding the Position of Each Machine in Palm Kernel Processing

It is crucial to comprehend the entire processing logic before comparing the machines.

After palm fruit processing, palm nuts are collected and dried. These nuts contain an outer shell and an inner kernel. The first challenge is breaking the hard shell without seriously damaging the kernel.

This is where a Palm Nut Crusher is used.

After shell cracking and separation, the recovered palm kernels may need further size reduction before oil extraction. At this stage, a Palm Kernel Crusher becomes relevant.

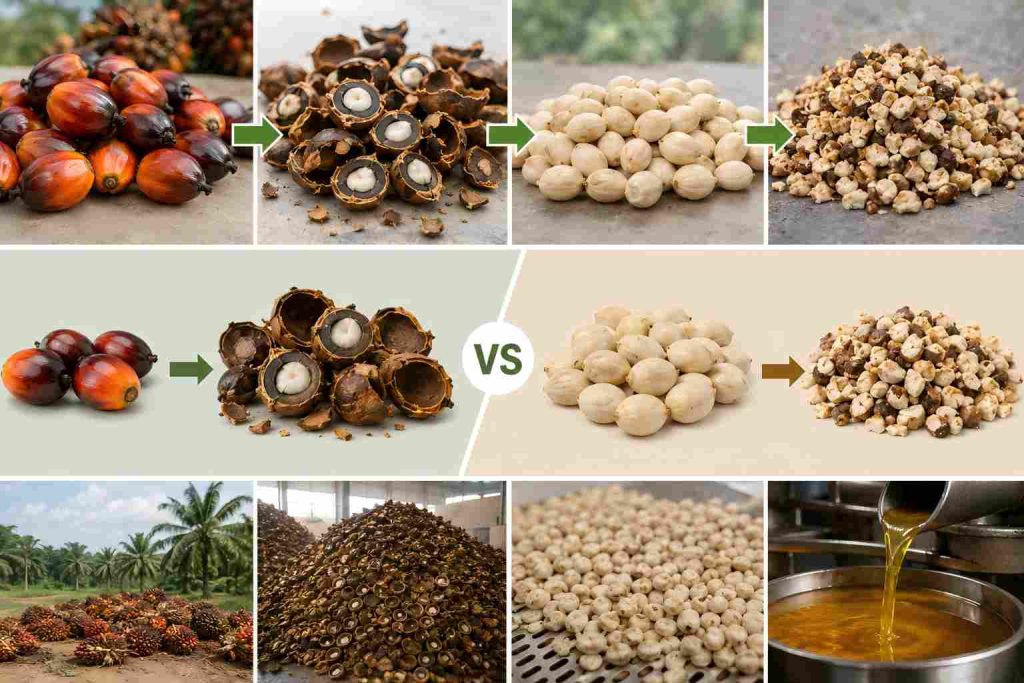

A simplified process looks like this:

Processing Stage	Main Material	Equipment Used	Main Purpose
Nut preparation	Whole palm nuts	Palm Nut Crusher	Crack shell and release kernel
Shell separation	Cracked nut mixture	Separator system	Remove shell from kernel
Kernel preparation	Clean palm kernels	Palm Kernel Crusher	Reduce kernel size for oil extraction
Oil production	Crushed kernel	Oil press/extraction system	Extract palm kernel oil

Many small processors combine these functions into one production line, but technically they represent two different crushing requirements.

What Is a Palm Nut Crusher?

A palm nut crusher is mainly designed to crack the hard shell surrounding the palm kernel.

Palm nuts are extremely resistant because the shell must protect the seed during natural growth. However, this same characteristic creates difficulties during industrial processing.

The purpose of the crusher is not to completely grind the nut into small particles. Instead, it aims to achieve controlled cracking:

• Break the shell effectively
• Keep the kernel as intact as possible
• Reduce kernel damage
• Improve separation efficiency

Modern palm nut crushers often use mechanical impact or roller-based crushing structures. For example, ripple mill-type systems apply controlled force to crack nuts while reducing excessive kernel breakage. Some industrial models can achieve cracking rates around 95% while controlling kernel loss and shell contamination below certain levels.

Finding a balance between kernel protection and cracking force is difficult.

If the crushing force is too low:

• Some nuts remain unopened
• Kernel recovery decreases
• More manual separation may be required

If the crushing force is too high:

• Kernels become broken
• Shell fragments mix with kernels
• Oil quality and extraction efficiency may decrease

Therefore, a good Palm Nut Crusher is not judged only by cracking speed but by the quality of the cracked material.

What Is a Palm Kernel Crusher?

A Palm Kernel Crusher works with already separated palm kernels rather than whole palm nuts.

Its main purpose is size reduction before oil extraction.

Palm kernels contain valuable oil, but pressing whole kernels is inefficient because their structure is dense. Crushing increases the surface area and improves oil release during mechanical pressing.

Typical functions include:

• Breaking kernels into smaller particles
• Improving oil extraction efficiency
• Creating more uniform feeding conditions for oil presses

Unlike a Palm Nut Crusher, shell cracking is no longer the primary objective.

The focus changes from “opening the nut” to “preparing the kernel.”

Feature	Palm Nut Crusher	Palm Kernel Crusher
Input Material	Whole palm nuts	Clean palm kernels
Main Function	Shell cracking	Kernel size reduction
Processing Goal	Separate kernel from shell	Improve oil extraction
Crushing Intensity	Controlled impact	Stronger grinding/crushing
Output	Cracked nut mixture	Smaller kernel pieces
Main Concern	Avoid kernel damage	Achieve uniform particle size

Key Differences Between Palm Nut Crusher and Palm Kernel Crusher

Different Processing Targets

The biggest difference is the material being processed.

A Palm Nut Crusher deals with a protective structure: the shell.

The machine must overcome shell strength while preserving the valuable kernel inside.

A Palm Kernel Crusher handles a softer target. The kernel itself needs to be broken down to improve downstream processing.

This means their mechanical designs naturally focus on different goals.

Different Crushing Principles

Palm Nut Crusher:

The machine applies impact or compression force to create cracks along the shell structure.

The ideal result is:

Shell broken + Kernel preserved

Palm Kernel Crusher:

The machine applies crushing or grinding force to reduce kernel size.

The ideal result is:

Kernel reduced + Particle size controlled

The difference seems simple, but it directly affects equipment selection.

Using a Palm Kernel Crusher to process whole palm nuts would usually lead to poor results because it is not designed to separate shell and kernel.

Similarly, using a Palm Nut Crusher after shell removal would not provide the particle size control required for efficient oil extraction.

Different Performance Evaluation Standards

The performance indicators are also different.

Performance Indicator	Palm Nut Crusher	Palm Kernel Crusher
Important Metric	Cracking rate	Crushing uniformity
Target	High shell opening rate	Suitable particle size
Quality Risk	Kernel breakage	Excessive powder generation
Process Impact	Separation efficiency	Oil extraction efficiency

Cracking rate is one of the most crucial metrics for palm nut crushers.

For Palm Kernel Crushers, particle distribution becomes more important because uneven crushing can affect pressing performance.

How Should Your Palm Processing Line’s Equipment Be Selected?

Many buyers focus only on machine capacity, but in real production, the correct selection depends on the entire processing system.

A 2-ton/hour crusher is not necessarily better than a 1-ton/hour machine if it creates more kernel damage or unstable output.

A number of elements need to be taken into account:

Condition of Raw Materials

Freshly collected palm nuts may contain different moisture levels and shell hardness depending on storage conditions.

Higher moisture content can affect cracking performance.

Production Scale

Small palm oil mills may prioritize:

• Easy operation
• Lower investment
• Simple maintenance

Large industrial plants usually focus more on:

• Continuous operation
• Automatic control
• Stable output quality

Final Product Requirement

If the goal is selling whole palm kernels, protecting kernel integrity is critical.

If the goal is palm kernel oil production, consistent crushing size becomes more important.

Palm Nut Crusher and Palm Kernel Crusher Work Together, Not Against Each Other

A common misunderstanding is that companies need to choose between a Palm Nut Crusher and a Palm Kernel Crusher.

In many commercial palm kernel oil production systems, these machines actually complement each other.

The Palm Nut Crusher solves the first challenge: accessing the kernel.

The Palm Kernel Crusher solves the second challenge: preparing the kernel for oil extraction.

Together, they create a more complete processing chain.

A well-designed system should not only maximize crushing capacity but also minimize material loss throughout the process.

For example, improving cracking efficiency by only a few percentage points can significantly increase annual kernel recovery in a large processing plant. Likewise, better kernel preparation can improve pressing stability and reduce unnecessary energy consumption.

Although Palm Nut Crusher and Palm Kernel Crusher have similar names, they perform different functions in palm kernel processing.

A Palm Nut Crusher cracks the shell while protecting the kernel, while a Palm Kernel Crusher reduces kernel size to improve oil extraction efficiency.

Selecting the right equipment depends on the processing stage that needs improvement, not only capacity or price. Understanding their differences helps processors improve recovery, reduce waste, and optimize production.
