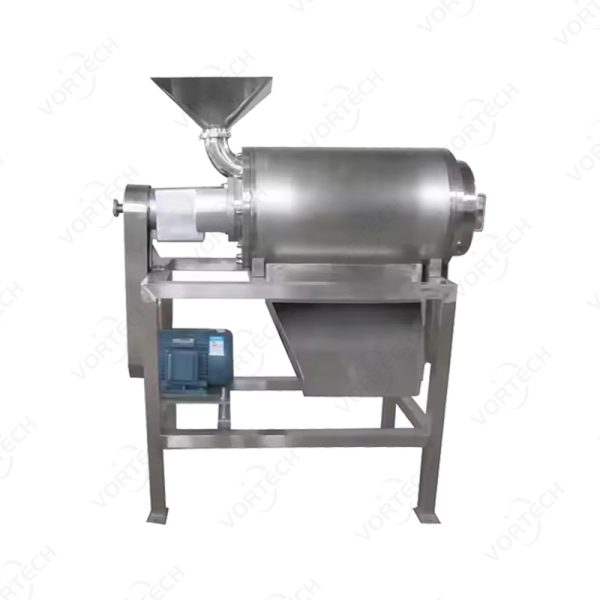

Peeling, Pulping and Refining Machine
- Capacity: 0.2-5 T/Hr,
- Single-stage SUS304 stainless steel for the main structure.
- Power: 1.5-11KW
- Italian technology, to remove the seeds and skins and get the raw tomato pulp.
- The screen’s mesh is 0.6 or 0.8 or 1.0mm as per the customer’s requirements.
- E-mail: sales@vortechglobal.com
- Categories: Tomato Paste Extraction and Refining Section, Tomato Processing Machine
- Inquiry Now
Product Details
Separates the skin, seeds, and other unwanted solid components from the tomato juice or pulp, resulting in a smooth, high-quality tomato paste with optimal texture and consistency.
Process It Belongs To:
Extraction and Refining process, specifically after the tomato product has been preheated, to ensure efficient separation of solids and refinement into a smooth paste.
Related Equipment Before:
Crushing and Extraction Equipment
- Breaks down whole tomatoes into pulp or juice, separating most of the juice from the solid matter.
- Feeds raw pulp directly into the refining system, preparing it for further solid-liquid separation.
- Gently heats the tomato pulp to improve viscosity and separation efficiency.
- Preheated pulp flows into the Peeling and Refining Machine, optimizing the removal of skins and seeds through thermal softening.
Related Equipment After:
- Concentrates the refined tomato pulp by removing excess moisture under vacuum.
- Receives the smooth pulp directly from the refining machine, ensuring high-quality feedstock for paste concentration.
Sterilization Equipment
- Eliminates microbial contaminants from the concentrated paste before it enters the packaging phase.
- Takes the evaporated tomato concentrate and subjects it to thermal sterilization, ensuring long shelf life and product safety.
Product Parameter:
| Model | Capacity | Power | Dimension | Screen Mesh |
| PPR-0.2 | 0.2 T/H | 1.5kW | 820*450*950 mm | 0.6, 0.8, 1.0mm, or Customized |
| PPR-2.5 | 2.5 T/H | 4.0 kW | 1350*770*1500 mm | |
| PPR-3.5 | 3.5 T/H | 5.5 kW | 1550*770*1530 mm | |
| PPR-5 | 5 T/H | 11 kW | 1750*1000*1700 mm |
