A crucial stage in the manufacturing of palm oil is sterilization, which softens fruit, prevents oil deterioration, and facilitates fruit separation. The choice between vertical and horizontal sterilizers affects efficiency, capacity, maintenance, and costs. Each suits different mill sizes, goals, and resources. This article compares both types to help you choose the best option.

The Role of Sterilization in Palm Oil Milling

Before diving into equipment types, it’s important to understand the purpose of sterilization in palm oil production:

• Kills lipase enzymes to prevent free fatty acid (FFA) formation.
• Softens mesocarp to facilitate oil extraction.
• Loosens fruit from bunches for efficient threshing.
• Prepares fibers and nuts for easier separation.

The standard sterilization process uses steam at 140–145°C for 60–90 minutes, depending on fruit maturity and equipment design.

Overview of Sterilizer Types

Vertical Sterilizer

A vertical sterilizer is a tall, cylindrical vessel standing upright. The fruit bunches are loaded into the vessel using a top-filling mechanism and sterilized by direct or indirect steam injection.

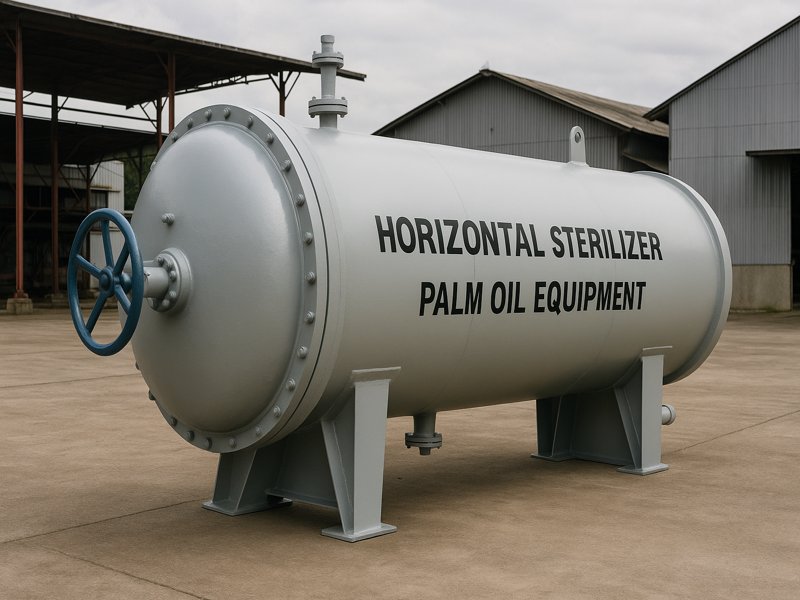

Horizontal Sterilizer

A horizontal sterilizer is a horizontally aligned cylindrical chamber, either stationary or rotating. Fruit bunches are loaded via rail carts or conveyors into horizontal chambers and sterilized uniformly.

Design and Configuration Comparison

Feature	Vertical Sterilizer	Horizontal Sterilizer
Orientation	Upright, cylindrical	Horizontal cylinder
Loading Method	Gravity-fed from the top	Via cage, trolley, or conveyor
Discharge Method	Bottom discharge chute	Front-end or side discharge
Footprint	Compact, vertical space-saving	Requires more horizontal floor space
Automation Compatibility	Higher automation possible	Traditionally manual, can be upgraded
Vessel Configuration	Batch process	Batch or semi-continuous

Performance and Processing Efficiency

Vertical Sterilizer Performance:

• Ideal for medium to large-scale mills (30–60 tons FFB/hour).
• Efficient heat and steam distribution due to vertical steam flow.
• Higher thermal efficiency as steam rises naturally.
• Requires an automated cage loading and unloading system for best performance.
• Reduces labor dependence.

Horizontal Sterilizer Performance:

• Suitable for small to medium mills (15–45 tons FFB/hour).
• More even heat distribution along the horizontal axis.
• Can be more flexible with smaller batch sizes.
• Generally, lower capital cost than vertical units.
• Slower throughput if manual handling is used.

Installation and Footprint Considerations

Vertical Sterilizer:

• Requires higher ceiling clearance.
• Smaller ground area, making it suitable for mills with space constraints.
• May require elevated platforms, silos, or towers.

Horizontal Sterilizer:

• Occupies larger horizontal floor space.
• Easier to integrate into ground-level facilities.
• Simpler installation in flat-layout factories.

Energy and Steam Consumption

Both systems use steam for sterilization, but differences in thermal dynamics can affect energy use.

• Vertical sterilizers often show better steam economy due to natural convection (steam rises).
• Horizontal sterilizers may need more steam or improved insulation for consistent temperature along the chamber.
• Steam recovery systems (condensate reuse) can optimize efficiency for both designs.

Labor and Automation

Factor	Vertical Sterilizer	Horizontal Sterilizer
Labor Requirements	Lower (with automated lifters)	Higher (manual cage movement)
Maintenance Access	Easier (external valves, vertical piping)	Internal access easier
Operator Safety	Higher due to top-down flow and automation	Requires safety protocol adherence
Control System	Easily integrated with SCADA/PLC	Often manually controlled unless upgraded

Verdict: If labor is costly or limited, vertical sterilizers offer better automation potential. Horizontal units are preferred in regions with lower labor costs.

Cost Comparison: Capital and Maintenance

Capital Costs:

Vertical sterilizers typically cost more upfront due to:

• Taller structural support
• Automated feeding systems
• Advanced control systems

Horizontal sterilizers are more cost-effective initially, especially for small-scale or startup mills.

Maintenance:

Vertical sterilizers:

• Fewer moving parts
• Longer intervals between overhauls
• May require crane access for parts replacement

Horizontal sterilizers:

• Easy access for routine cleaning and inspection
• Higher wear on moving parts (like rotating cages)
• Regular seal and door maintenance is needed

Downtime and Cycle Time

Vertical systems may have faster cycle times due to:

• Efficient drainage
• Centralized loading/discharging
• Better steam flow dynamics

Horizontal systems may be slower due to:

• Manual loading/unloading
• Heat dispersion time
• Time lost in moving cages in/out

However, multi-chamber horizontal units can reduce this limitation by overlapping loading/sterilizing/unloading operations.

Sustainability and Environmental Considerations

• Condensate recovery and pressure control systems can be added to both systems.
• Vertical sterilizers typically allow better condensate drainage, reducing wastewater.
• Horizontal sterilizers with modern seals and exhaust systems can minimize steam loss.

Both systems can be paired with biomass boilers, effluent treatment plants, and waste heat recovery units for improved sustainability.

Application Suitability by Mill Size

Mill Size (Tons FFB/hr)	Recommended Sterilizer Type
5–15 tons/hr	Horizontal (manual/semi-auto)
15–30 tons/hr	Horizontal or small vertical
30–45 tons/hr	Vertical (semi-auto/auto)
45+ tons/hr	Vertical (fully automated)

Pros and Cons Summary

✅ Vertical Sterilizer Pros

• Compact footprint
• Lower steam consumption
• Supports full automation
• Faster sterilization cycle
• Reduced labor requirements

❌ Vertical Sterilizer Cons

• Higher upfront cost
• Requires tall buildings
• Complex installation

✅ Horizontal Sterilizer Pros

• Lower capital investment
• Easier maintenance access
• Simple layout for ground-based operations
• Ideal for smaller mills

❌ Horizontal Sterilizer Cons

• Higher labor requirement
• Steam efficiency can be lower
• Limited automation in basic models

Which Sterilizer Should You Choose?

The decision between a vertical and horizontal sterilizer should be based on your:

• Mill size and capacity goals
• Available land and layout
• Labor availability and cost
• Automation and safety priorities
• Capital investment vs. long-term savings

Choose Horizontal Sterilizers If You:

• Are you retrofitting an existing mill
• Operate in a labor-abundant region
• Want a simpler, lower-cost setup
• Prefer familiar and proven systems

Choose Vertical Sterilizers If You:

• Are you building a new or compact plant
• Want better steam efficiency and lower emissions
• Aim for long-term automation and safety
• Can afford the higher initial investment
